Scope Diagram Astrocamera.Net - Astrophotography by Dave Kodama

Ring of Fire Solar Eclipse -

20 May 2012

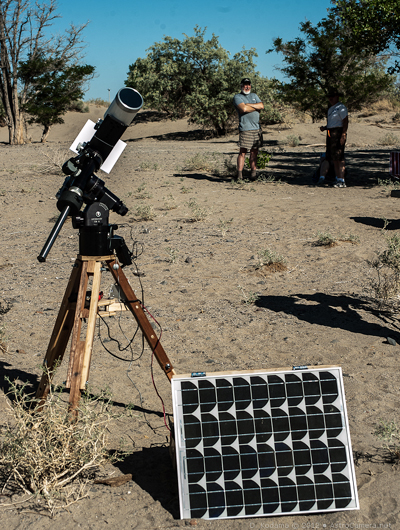

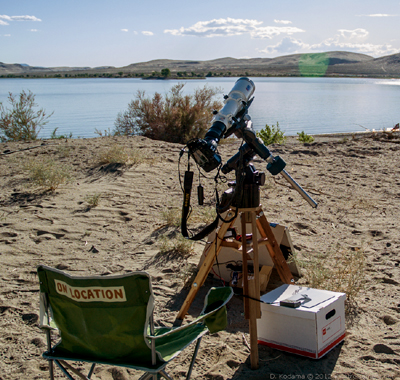

My telescopic setup included a Losmandy GM8 (stepper motor drive) mount on a home-made (disposable) tripod. The electronics are powered by a 36W solar panel, backed up with an 18AH gel cell battery. The battery powers the mount through a solar panel charge regulator at ~13V, and the camera at 9V via a separate switching regulator.

The telescope is a 4" Borg (640mm focal length) with Thousand Oaks solar filter, feeding a Nikon D700 full-frame camera with a 2x teleconverter.

Pinhole Photo Setup

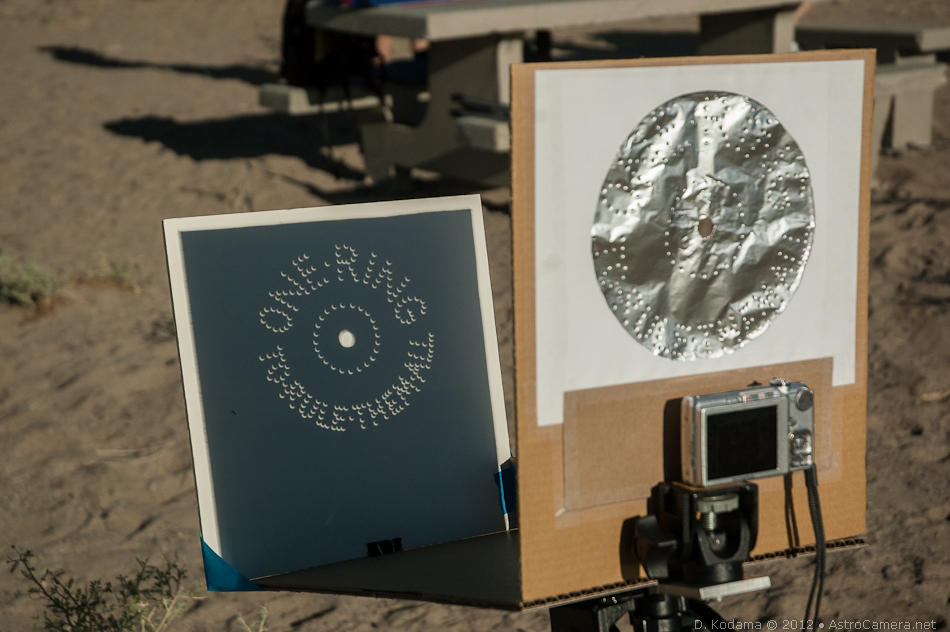

The pinhole image photo setup consists of a tripod-mounted holder with a projection screen at one end, and the pinhole pattern with camera port at the other end. The tripod has a video pan head for easy tracking of the sun (see time-lapse video).

The pinholes were made in aluminum foil using a 1/16" punch from an art supply store.
